15W 28V FM MRF136

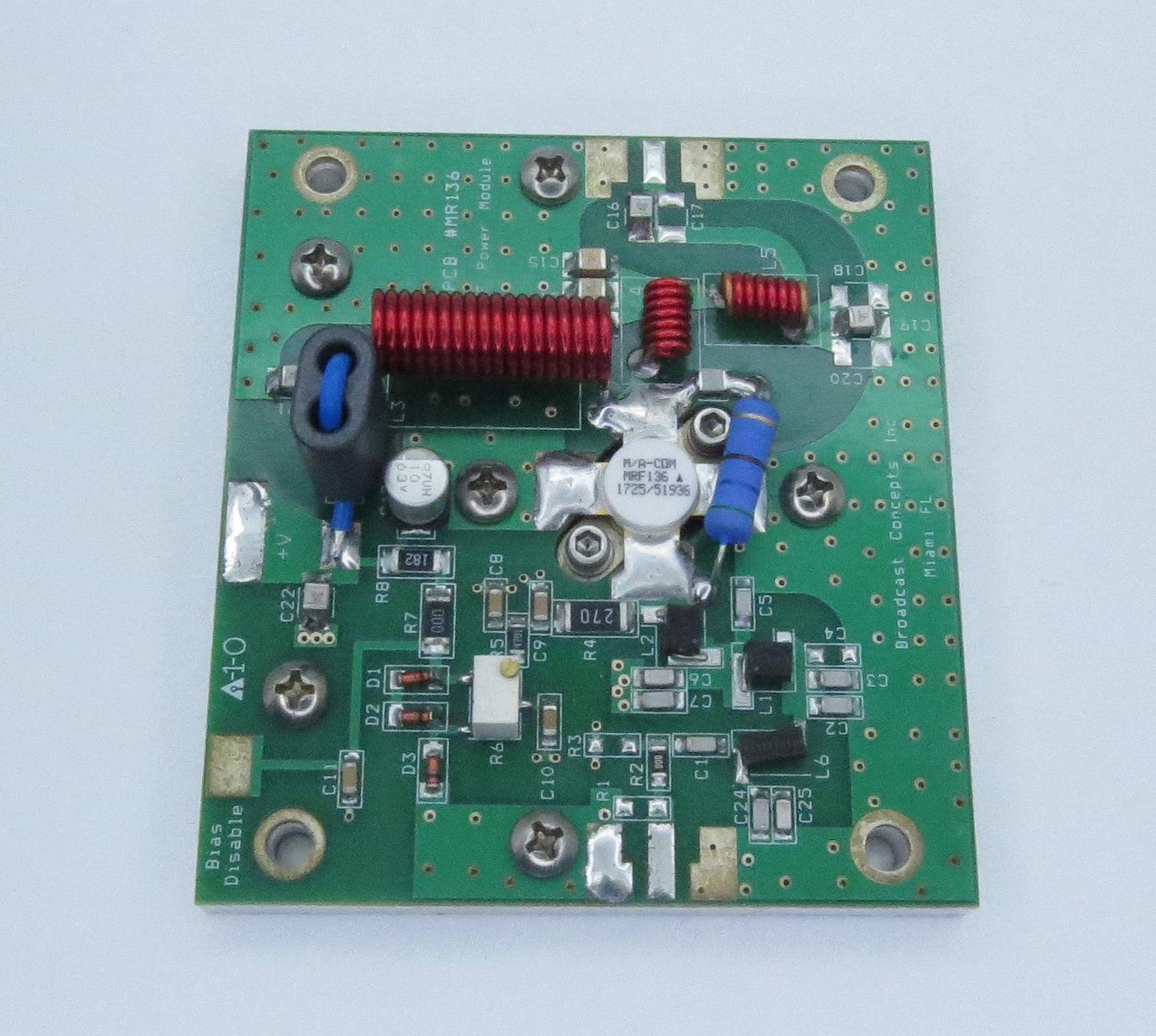

Designed for FM radio transmitters, this amplifier incorporates broadband matching and a MRF136 MOSFET transistor. 86 – 110MHz. 28 Volts. Input/output 50 ohms. Pout: 15W minimum. 12dB Gain (15W) Class AB. Requires 28Vdc at 1.0 amps typical. No bias adjustments or RF circuit tuning is required. Please download the amplifier data sheet in PDF format (690kb) Mechanical information is available in DXF Format or PDF format. Each pallet amplifier we sell is designed and tested using HP 8753 vector network analyzers. Our amplifier products are manufactured using an automatic surface mount assembly process. This pallet is optimized for 28 volt operation. Using a lower voltage will result in lower efficiency output power. This pallet is well suited as a driver stage and it will operate down to 2 volts. Bias adjustment at lower voltages is not required. All units are shipped with the bias point set at 100ma at 28V. RF output power can be controlled by adjusting the supply voltage. We sell a high quality 500 watt low pass filter for FM broadcast applications
