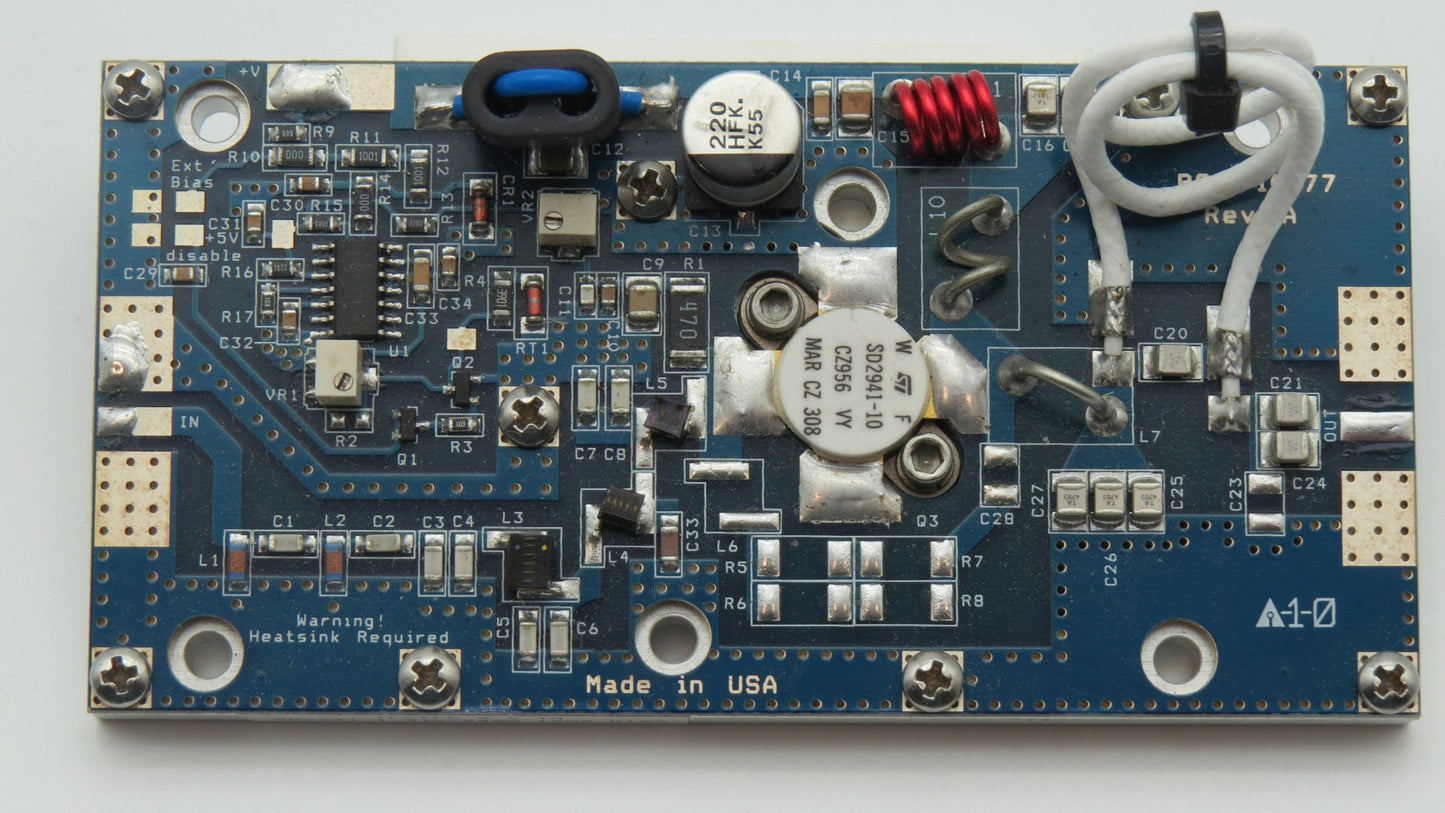

175W 48V FM SD2941

86 – 110MHz. 2.25 x 4.50 inches Input/output 50 ohms. Pout: 175W minimum 185W typical 17dB Gain (175W) Class B. Requires 48Vdc at 6.0 amps maximum. No bias adjustments or RF circuit tuning is required.
