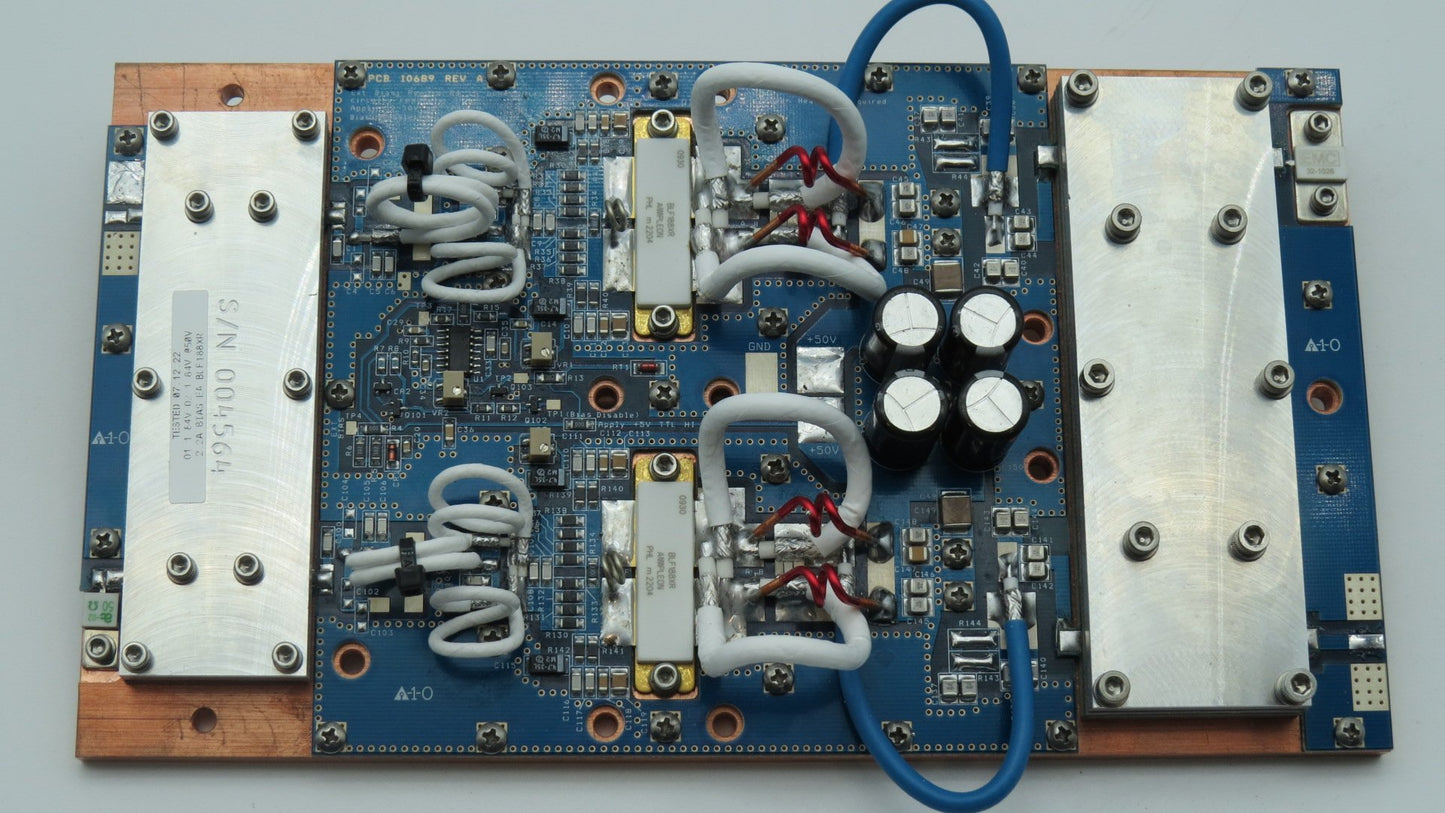

600 Watt ATSC Digital VHF-H (1200 Watt Analog) BLF188XR

600W average digital power in 8VSB 500W DVB-T 21 dB gain typical Power Req. 50 volts @ 28A Temperature compensated bias LDMOS NXP BLF188XR devices. Input power 3 watts Typical. Input return loss -20dB maximum. 90 degree hybrids
