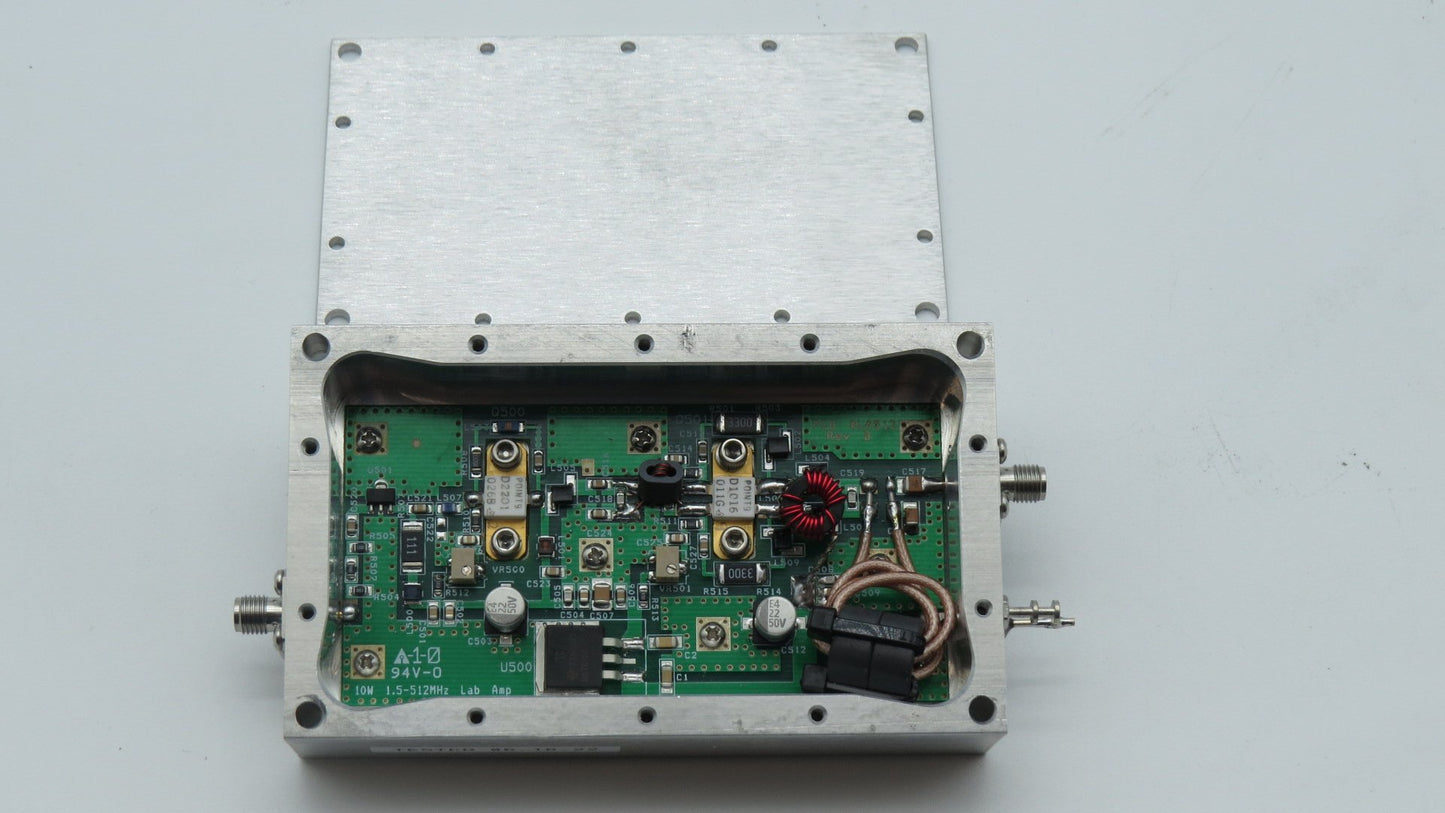

10W Lab Amp Milled housing

The P10LA525XR is a 10W class A amplifier designed for 1 to 525MHz broadband operation. This amplifier uses advanced broadband matching techniques and high reliability gold mosfets to achieve high linearity, extreme ruggedness and broadband operation. This design is stable from 22 to 30 volts and it can withstand infinite VSWR at 10W CW making it ideal for laboratory use. Applications: Signal generator source boost Network analyzer source boost TV/FM/Communications driver stage Laboratory research SPECS Parameter Min. Typ Max. Unit Frequency 1 525 550 MHz Pout CW P1dB 40 dBm Power In -2 dBm Gain 44 46 dB S21 Flatness +/- 1.5 dB Drain Current 1.8 2.5 Amps Input R/L -15 dB Supply Voltage 24 28 30 Volts DC IMD 2 tone 10KHz 10W PEP -34 -28 dBc 2nd Harmonic -30 -20 dBc 3rd Harmonic -30 -25 dBc Physical Dimensions 4.25 x 2.50 x 1.1 inches
